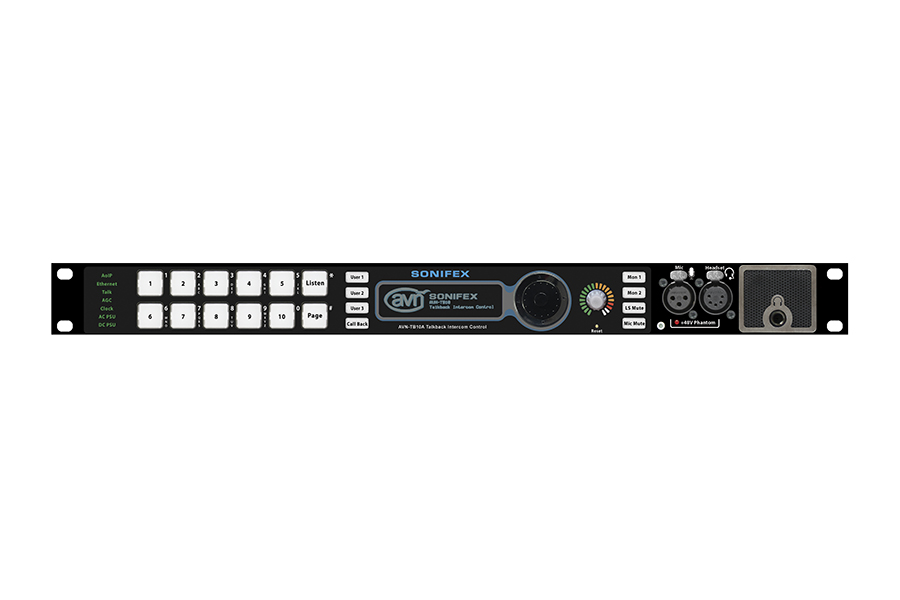

  • Sonifex AVN-TB10AR 10 Button Advanced Talkback Intercom

    The Sonifex AVN-TB10AR 10 Button Advanced Talkback Intercom is an audio based talkback intercom unit with an advanced feature set, allowing them to be used in multiple applications. With both 4-wire analogue inputs and outputs, as well as AoIP network audio connectivity, the unit can be used with existing legacy 4-wire systems and with new AES67 AoIP networked audio infrastructure. Additionally, all audio is at 48kHz sample rate, meaning that it’s broadcast quality audio as standard.

    RAVENNA (of which AES67 is a subset) allows for the distribution of audio across a network. The AVN range use RAVENNA as the communication method providing compatibility with other AES67 systems.

    The AVN-TB10AR is a 10 button intercom meaning that 10 other ‘stations’ can be defined, one per button, for communication. Comms can be made as a Talk action, a Listen action or a duplex Talk/Listen action to/from each station. Coloured LEDs in the buttons help to show which action is being used and there is also a Callback button for when you’re unavailable to receive a call.

    The stations can be from anywhere on the AoIP network and the use of Bonjour Device Discovery means that other stations can be found quickly and sometimes automatically.

    The Page button is used to speak to all stations (or a defined list of stations) and Group Talk functions can be enabled to page particular groups of stations.

    Two monitor buttons allow for routing audio directly to the speaker e.g. to take an IFB feed or an off-air transmission signal. Signals can be ducked or mixed when a talkback input is received to the speakers or headphones.

    Three user defined buttons can be programmed for different functions, such as for Group Talk.

    The speaker mutes automatically when headphones are inserted and the volume level of headphones, speaker and incoming sources can all be controlled with one front panel rotary encoder volume control knob, which shows the level using RGB LEDs around the outside of the knob.

    Advanced acoustic echo cancellation & built-in microphone AGC (automatic gain control) ensure that there’s no acoustic feedback between microphone and speaker.

    Buttons are available for microphone mute (cough) and speaker mute actions and these can be controlled remotely by GPI or network commands.

    Each unit has a built-in webserver which is where the majority of settings and configurations are made. The front panel OLED display can also be used to configure the unit, although more functionality is available by using the webserver. The webserver is a responsive design meaning that it can be used with small screens on smartphones and tablets.

    For more information, please visit this product's webpage.
