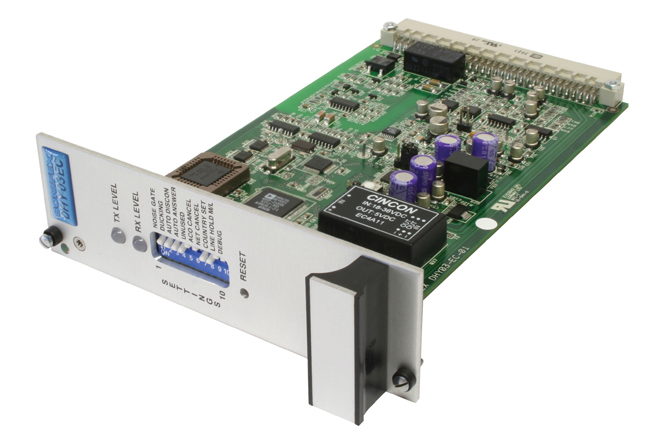

• Sonifex DHY-03EC Automatic Digital TBU, Eurocard



  The DHY-03EC eurocard single digital telephone hybrid uses the same technology as the DHY-03 but is based in a card-style format for installation in a eurocard rack frame, or in certain broadcast mixers. Eurocards are supplied without a power supply, or casing, and are therefore significantly cheaper than the other units. It is pin compatible with the older DHY-02EC eurocard, but has the outstanding performance and most of the features of the DHY-03, with a few differences:

  -The analogue input is line level only, though the 10dB professional/ consumer jumper is retained.
  -There is no conferencing facility and consequently no record output option.
  -The level meters are 2 tricolour LEDs.
  -The level switches are now onboard 3 way jumpers.
  -The remote outputs are connected via slide switches which means that the output signal can be either +5V, +15V or pull down to ground.
  -The handset is connected to the telephone line via a divert relay.

  For more information, please visit this product's webpage.
